Thermacore® Insulated Steel Garage Doors

MODEL 5720, MODEL 5740, MODEL 5760

Thermacore^® Collection insulated steel doors are the ideal choice for premium construction and maximum thermal efficiency. This series of doors feature construction of steel-polyurethane-steel as well as between-section seals with thermal breaks to reduce air infiltration. With several panel designs to choose from, these doors offer design flexibility, durability and thermal efficiency that will help keep your home comfortable in cold or hot climates.

Thermacore® Collection premium insulated garage doors deliver maximum thermal efficiency and design flexibility.

Learn more about our new Artisan Wood Grain™ finish options!

Request a Quote

Construction

Product Specifications
5 Panel Options Available	Standard, Flush, Long, Microgroove, Vertical Short and Vertical Long
Thermacore^® Construction	Provides a continuous layer of foamed-in-place, CFC-free polyurethane garage door insulation sandwiched between two layers of corrosion-resistant steel, for maximum thermal efficiency
Polyurethane Garage Door Insulation	Provides thermal efficiency U-factor* of .20 (_{9.31 R-value*}): Model 5720 U-factor of .15 (_{12.76 R-value*}): Model 5740 U-factor of .10 (_{17.5 R-value**}): Model 5760
Multiple Surface Options	Embossed wood grain, microgroove wave pattern and smooth
Steel Backing	For clean, finished interior appearance
Durable Finish	Hot-dipped galvanized steel with two coats of baked-on polyester paint
In-between Section Seals	Seals provide superior resistance to the elements
Bulb-type Bottom Weatherseal	Guards against wind and rain while providing a cushion when closing the door
Wind Load	Our WindStorm™ wind load rated system is available on selected products to meet regulations for a variety of wind speeds, ensuring your door is built to withstand varying wind conditions, including hurricane-force winds, and meet the most stringent local building codes.

_{U-factor values are independently tested and verified per ANSI/DASMA 105.}
_{**Overhead Door™ Brand uses a calculated door section R-value for our insulated doors.}

Overhead Door™ Brand participates in the DASMA Thermal Performance Verification Program. The program verifies the thermal performance of sectional doors. The lower the U-factor rating, the better the thermal performance.

^{Symbol indicates verified U-factor rating in accordance with the DASMA Thermal Performance Verification Program.}

Warranty

20-year limited warranty on Models 5720
Limited lifetime warranty on door Models 5740 and Model 5760

Residential garage door and opener system limited warranty

(when purchased together) – features 3 year on components (see warranty for details)

Panel Designs

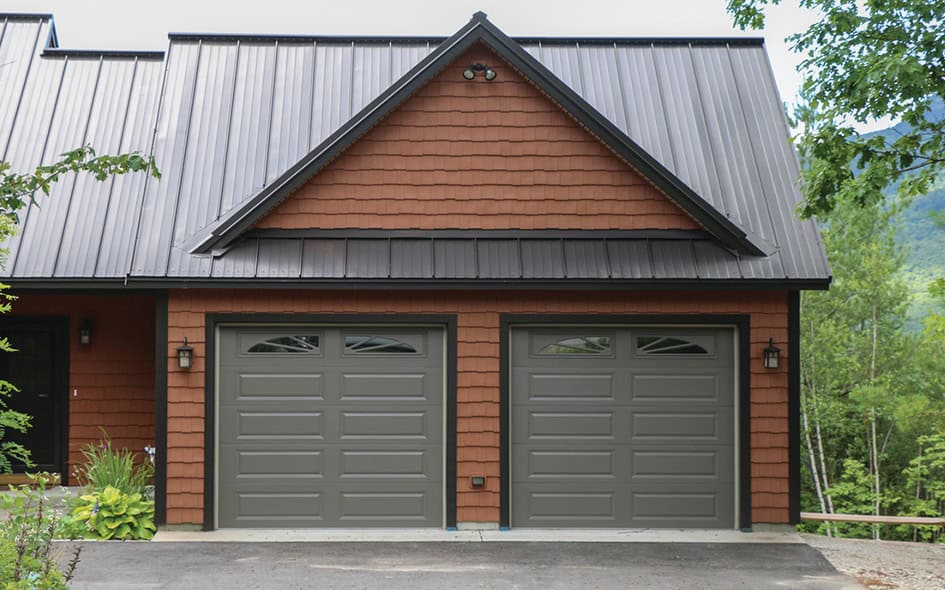

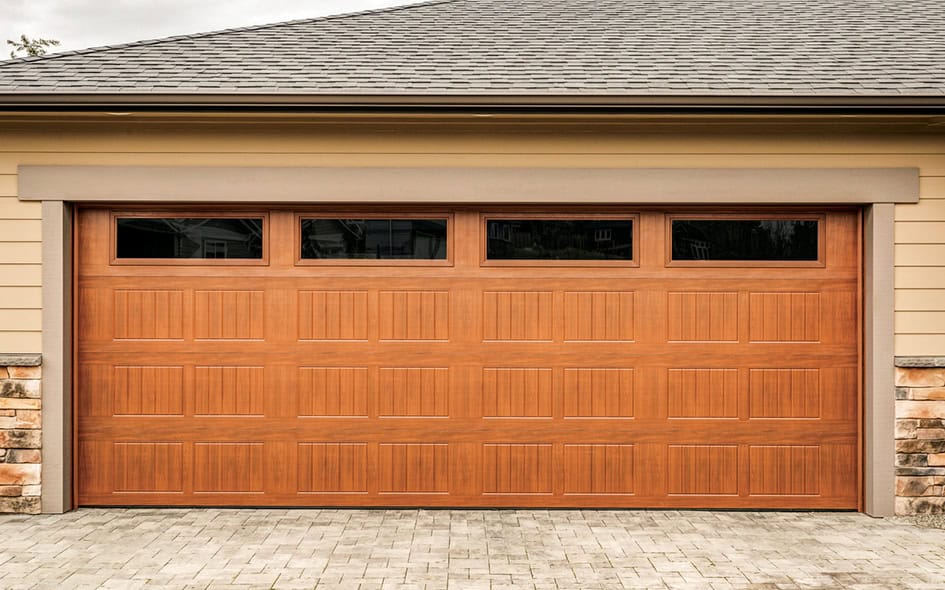

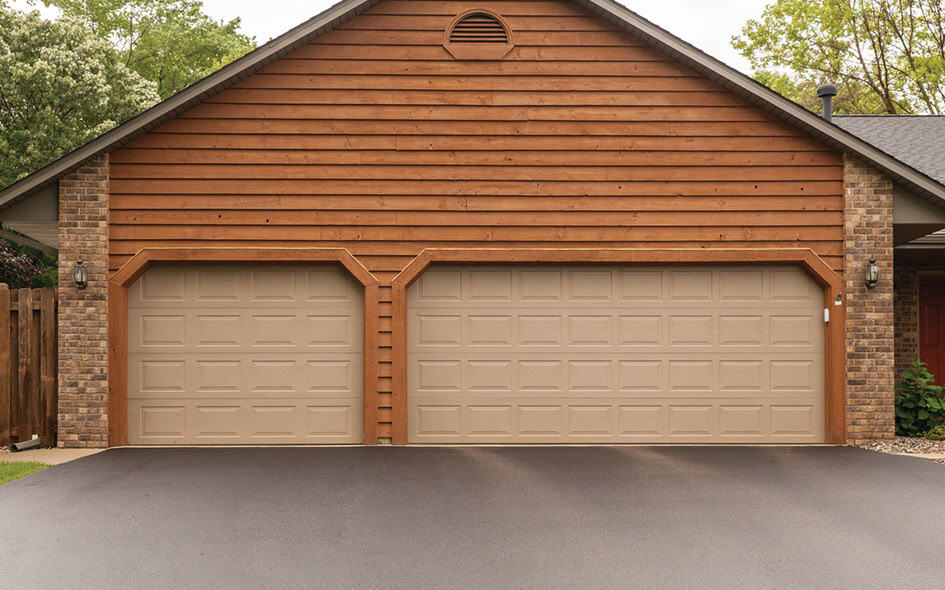

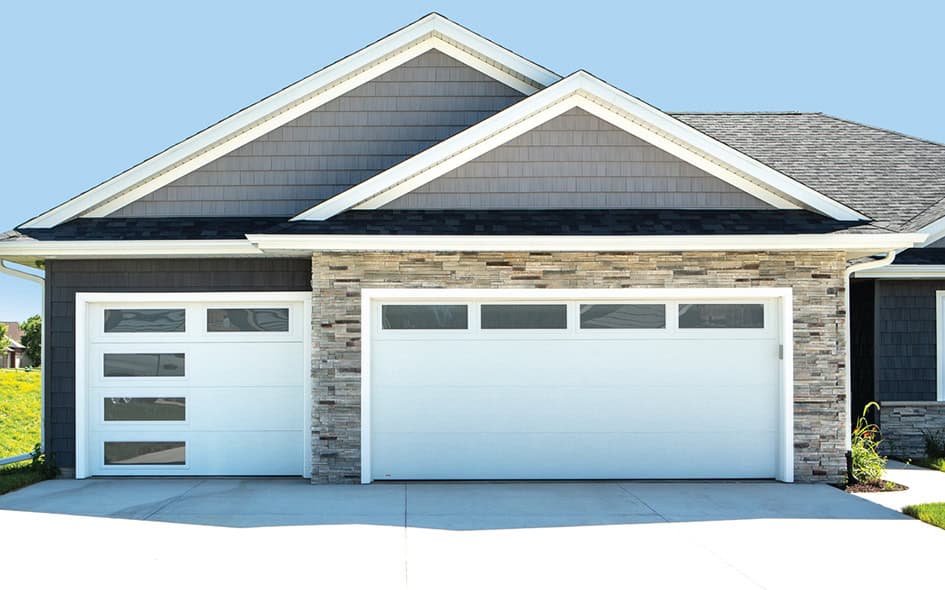

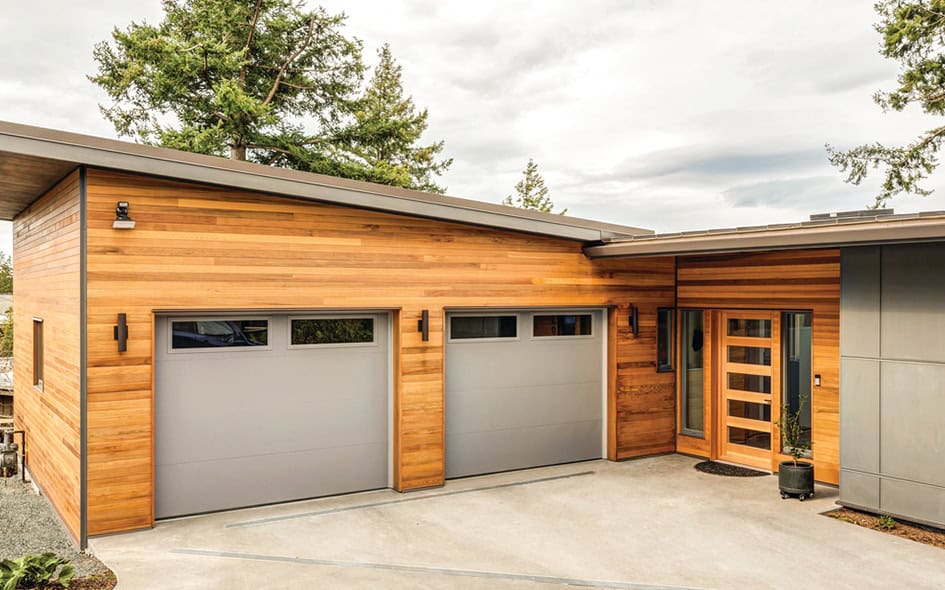

Standard (5740 (194), 5720 (297), 5760 (494))	Long (5740 (198), 5720 (295), 5760 (496))	Flush (5740 (195), 5720 (298), 5760 (495))	Vertical Short (5740 (199), 5720 (296), 5760 (497))

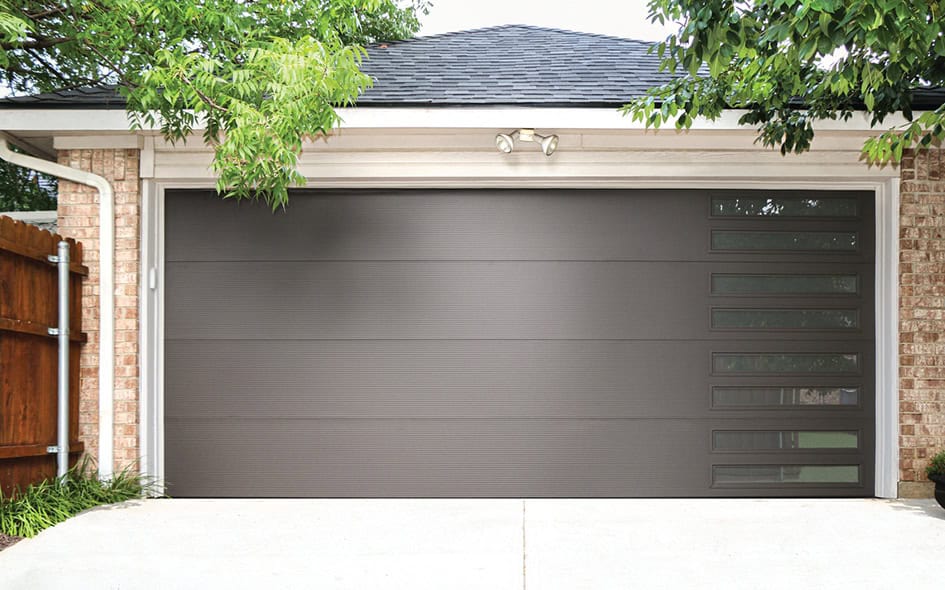

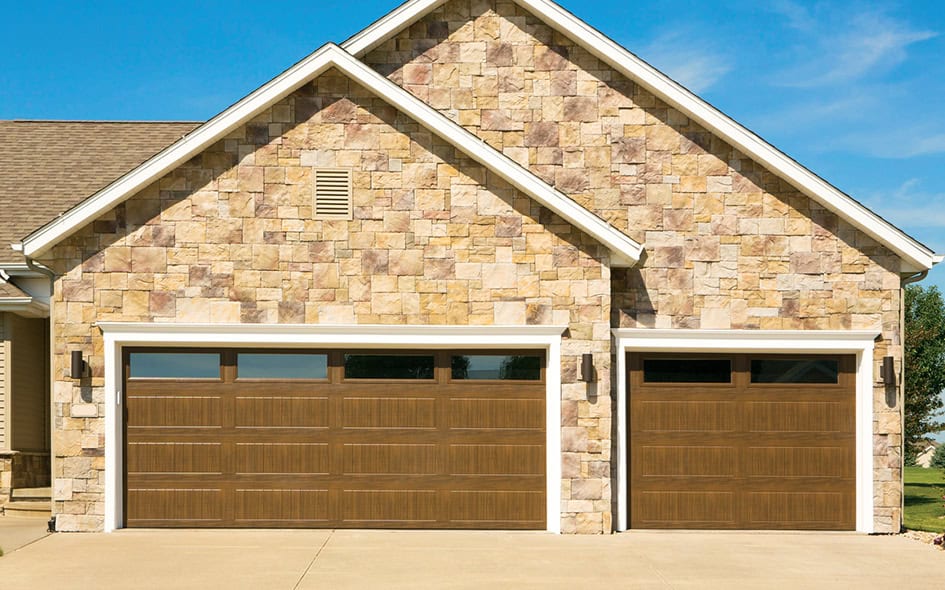

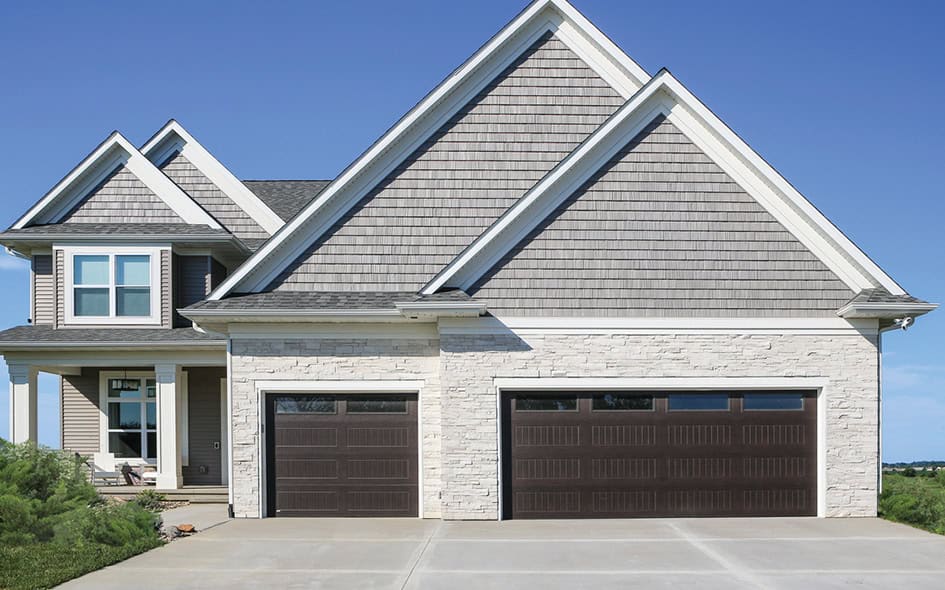

Vertical Long (5740 (192))	Microgroove (5740 (196))

Painted Finishes

Artisan Wood Grain™ Finishes (Only Available For Model 5740)

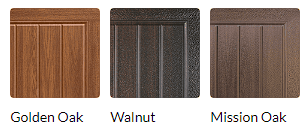

Textured Wood Grain Finishes

Modern Metallic Finishes

Actual door color may vary slightly from the digital representation above. Color samples are available by request through your local Overhead Door™ Distributor. Not all colors are available on all models and panel designs, please see chart below for detailed color availability by panel style.

Color Options by Panel Styles

Standard				Vertical Short			Vertical Long
Colors	5720 (297)	5740 (194)	5760 (494)	5720 (296)	5740 (199)	5760 (497)	5720 (192)	5720 (295)	5740 (198)	5740 (198)
White	✔	✔	✔
Almond	✔	✔	✔
Desert Tan	✔	✔	✔
Sandstone	✔	✔	✔
Terra Bronze		✔
Brown		✔	✔
Forest Green		✔
Gray		✔
Black		✔	✔
Beachwood Plank
Cedar Plank
Medium Oak Plank
Carbon Oak Plank
Golden Oak		✔	✔
Walnut		✔	✔
Mission Oak		✔	✔
Silver
Dark Bronze
Black Frost

Windows

Clear Short	Stockton 1	Waterton 1	Williamsburg 1 (4pc)
Winston 1	Williamsburg 1 (8pc)	Ashton 1	Cascade 1
Cathedral 1	Madison 1	Prairie 1	Ruston 1
Sherwood 1	Stockford 1

Windows available on Long, Flush, Vertical Long and Vertical Short panels.

Clear Long	Stockbridge 2 (4 lite)	Stockford 2	Stockton 2 (4 lite)
Stockton 2 (6 lite)	Stockton 2 (8 lite)	Stockton 2 (8 lite) Arch	Stockton 2 (12 lite)
Waterton 2	Williamsburg 2	Wyndbridge 2	Ashton 2
Williamsburg 2 (4pc)	Cathedral 2	Cascade 2	Prairie 2
Ruston 2	Sherwood 2	Somerton 2	Stockbridge 2 (3 lite)

Carriage style window trim. Available on Models 5740, Standard and Flush panels only.

Stockbridge	Stockton	Stockton Arch	Somerton
Wyndbridge Arch

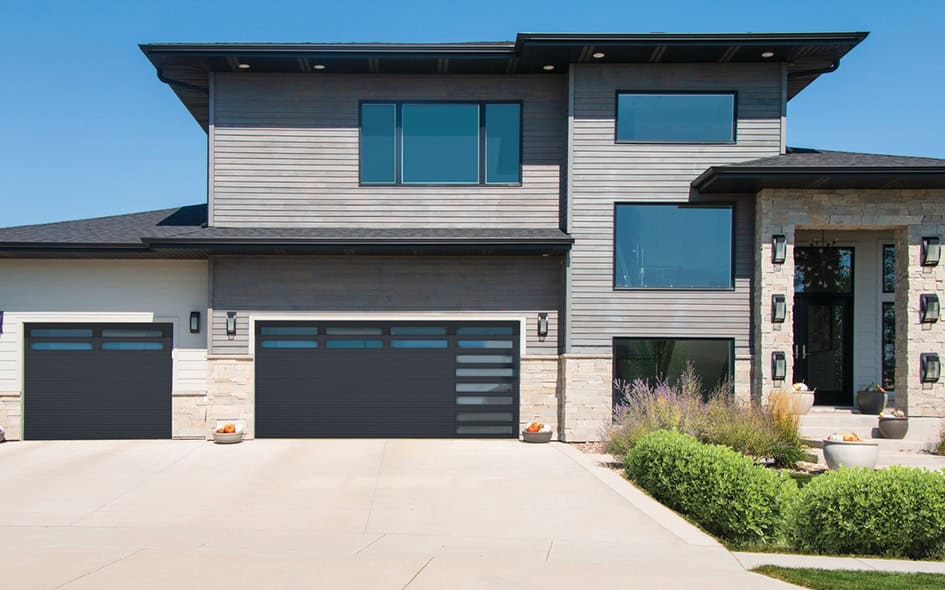

Available on Flush and Microgroove panels in Modern Metallic finishes only. Modern Metallic finishes cannot be paired with other window options.

Narrow

Window Placements

Windows may be arranged vertically or horizontally on the Models 5740 and 5760. Windows must be Clear Short, Clear Long or Narrow. Windows placed in the bottom section of a door must have DSB 1/8″, tempered, or 1/2″ insulated glass.

Optional Window Placement

Vertical Window Column

All Windows

Vertical or Horizontal Option

Frames

Frame Color Options (Artisan Wood Grain™ Finish Only)

Clear Long & Clear Short Windows

Gray

Brown

Black

Narrow & Double Narrow Windows Only

Silver

Dark Bronze

Black Frost

Glass

All decorative trim windows come standard with double strength glass.

Clear

Obscure

Bronze

Satin Etched

Gray Tint

Green Tint

Actual glass may vary from digital rendering. Check with your Overhead Door™ Distributor to view a glass sample.

Hardware

Garage Door Hardware

Arrow

Aspen

Barcelona

Bean

Conifer

Fleur de Lis

Spear
